The HRS-130 loudspeaker is a higher performance version of our popular HRS-120. Not only have significant improvements been made to the sound quality, but the cabinet has been restyled to give a smoother look, enabling the HRS-130 to blend more easily in to the room. The improved look is enhanced by a new, luxurious high-polish polyester finish, which is available in black or white.

Award Winning Loudspeaker

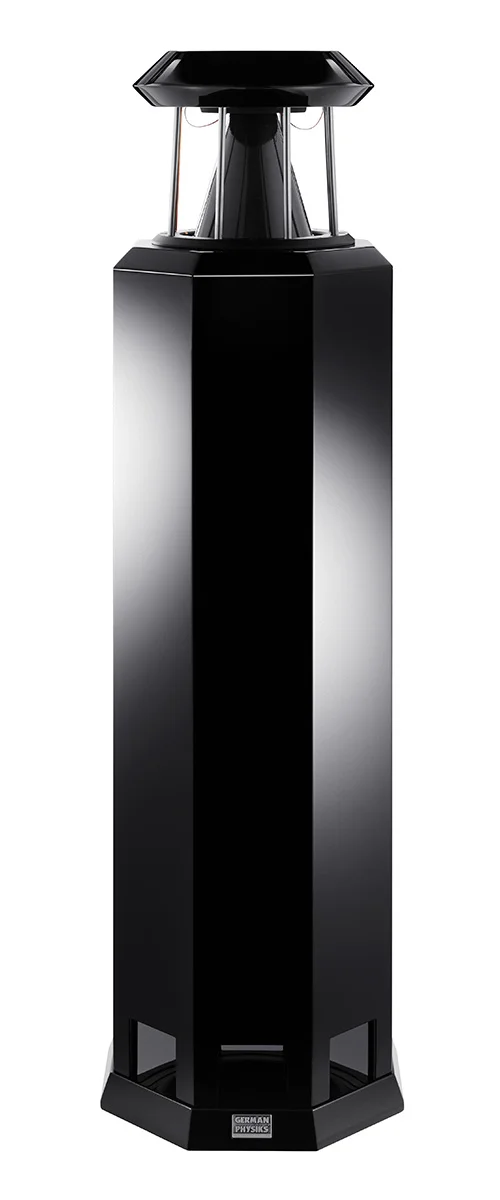

The HRS-130 Loudspeaker uses a single carbon fibre German Physiks DDD driver mounted on top of a slim, octagonal, floor standing cabinet, with a downward firing 10-inch woofer set in its base

The crossover in the HRS-130 is developed from the one used in the Borderland Mk IV: its larger stable mate. This provides exceptional integration of the DDD driver and woofer, so that they work seamlessly together to create a detailed, three-dimensional stereo image that immerses you in the music. The transparency of the DDD driver opens a new window on to your music collection, by helping to reveal fine detail and ambience information that you would normally only expect to hear at a live performance.

Most important of all, the DDD driver’s exceptional transparency better allows you to experience the emotion that is the essence of a good musical performance.

Improved Resolution and Dynamics

Well Controlled and Extended Bass

The HRS-130 has a new crossover derived from the one in our best selling Borderland  Mk IV. It provides improved resolution and dynamics, making it even easier to follow the various threads in a performance, even at high levels.

This makes listening a truly involving experience.

The bass driver is located at the bottom of the cabinet and works in a “sealed” enclosure. This enclosure is linked via a small opening to a smaller cavity located at the top of the cabinet. This cavity acts as a Helmholtz Resonator and is tuned to the resonant frequency of the main bass enclosure and ensures a smoother bass response.

The HRS-130 uses the same 10-inch bass driver as our much more expensive PQS-402. This provides deep and well defined bass with excellent control. The integration of the bass with the rest of the frequency range is exceptional, allowing you to immerse yourself in the music without the feeling that you are listening to several different drivers.

The DDD driver’s omnidirectional radiation characteristic and its very wide operating range, together with several other key features give the following important advantages to all German Physiks designs and is what sets them apart

1. Exceptionally coherent and natural sound

This is due to the DDD driver’s 7 octave plus operating range. This is very difficult to achieve when such a wide range is split over two or more different types of driver, which are in different positions on the loudspeaker’s cabinet.

This wide operating range also eliminates the crossover point in the mid-range that loudspeakers using pistonic drivers must have. This is where our hearing is most sensitive, so removing anything that might cause level or phase errors from here will improve transparency.

2. Realistic stereo images more like those you experience in the concert hall

This is because the DDD driver's omnidirectional radiation characteristic creates an enveloping sound field like that in the hall, rather than beaming the sound at you as conventional drivers do. This way the HRS-130 is able to recreate a more natural rendition of the original stereo image. This has excellent depth and focus, but without the overly sharp image definition that some hi-fi loudspeakers produce and which you will rarely if ever hear at a live performance.

3. Stereo imaging enjoyable in almost all positions in the room

This is achieved whilst also maintaining an even tonal balance, much like at a live performance: again due to the DDD driver’s omnidirectional radiation pattern. This gives more flexibility in where you sit and allows several people to enjoy a good sound together. This is useful in home theatre systems.

As you are not restricted to a small “sweet-spot” in order to hear the best sound, the HRS-130 provides a more relaxed listening experience. This is especially noticeable when you listen for long periods.

4. Exceptional dynamics

The DDD driver’s very low moving mass, less than 3 grams, allows German Physiks loudspeakers to recreate both the attack of the music and resolve low level detail very accurately. This is essential in order to faithfully reproduce the delicate nuances of a performance and make it sound like music, rather than just good hi-fi. The resultant transparency is maintained even on complex high-level passages.

5. Accurate portrayal of musical instruments’ tonal characteristics

This is because the DDD driver is phase linear across its operating range. This together with the excellent dynamic response, enables the HRS-130 to reproduce percussion with startling reality. Voices have a clarity and purity that can be breath taking, with all the elements of the vocal sound correctly located in space and with no undue emphasis. The hardness you often hear with conventional tweeters is eliminated and you get a greater sense of hearing a live musician.

6. Quick and easy to set up

As they are omnidirectional, German Physiks loudspeakers are less sensitive to room position than conventional designs and there is no toe-in adjustment to worry about.

7. The DDD driver is less likely to excite cabinet vibrations

Due to its very low moving mass and the way that it is mounted, the DDD driver puts less energy into the cabinet than an equivalent conventional driver. This reduces cabinet resonances and improves transparency.

8. Physically extremely rugged

The DDD driver can withstand abuse that will destroy most other drivers. Thisis illustrated in the video below. We don’t advise our customers to try this, just in case they are having an unlucky day.

For a more detailed explanation of these points, please follow this link.

More information on the DDD driver, its development and advantages, please follow this link.

Quick and Easy to Set Up

Bi-wire or Bi-amp

The DDD driver’s omnidirectional radiation pattern and wide operating frequency range make the HRS-130 less critical of its position in the room than conventional loudspeakers, so it is very quick and easy to set up. In addition, because the HRS-130 is omnidirectional, there is no toe-in adjustment to worry about. Last but not least, with a cabinet footprint of only 325mm x 325mm (12.8” x 12.8”), the HRS-130 is easy to fit into even a modest sized room. Don’t let this deceive you though, as the HRS-130 will drive rooms up to 75 square metres (792 sq ft) in size.

The HRS-130 is fitted with two sets of high quality WBT nextgen™ loudspeaker terminals. This allows the HRS-130 to be bi-wired or bi-amped. High quality jumpers are supplied to enable the HRS-130 to be used with just one set of loudspeaker cables.

Adjustable High Frequency Output

Jumpers on the loudspeaker’s rear panel allow the high frequency output level to be adjusted in 4 steps: -2dB, flat, +2dB and +4dB, enabling the user to easily compensate for the variations in the absorption of high frequencies that can occur due to different types of furnishings and room construction.

Low Resonance Cabinet Design Enhances Transparency

Designed for a Lifetime of Listening Pleasure

Colouration caused by resonances in a loudspeaker cabinet, where the cabinet itself starts to radiate sound energy, can seriously degrade the sound quality by obscuring detail. To counter this, the HRS-130, like our more expensive Borderland MK IV, uses an octagonal cross-section cabinet. The panels on this cabinet are smaller and stiffer than those of an equivalent size square section cabinet would be. Critically placed internal bracing further increases rigidity.

As a further anti-resonance measure, a special damping material called Hawaphon® is applied to the inside of each panel. This adds mass to the panel to reduce the resonant frequency and its special internal structure very effectively converts vibration energy into heat. Hawaphon® achieves a broadband attenuation of structure-borne sound of more than 50dB: a remarkably high figure

Finally, to damp resonances of the air within the cabinet, the whole of the inside of the cabinet is lined with a thick layer of high-density felt.

As you would expect from a German product, the quality of construction and reliability are first class. We use the same quality of parts in the HRS-130 as in our reference products, where we design for a minimum life expectancy of 25 years. For this reason we have selected highly corrosion resistant V4 grade stainless steel for the DDD driver support pillars, terminal mounting plates and all the screws.

Meticulous care and attention is paid during the manufacture of the HRS-130. Prior to assembly all components and materials are subject to a rigorous inspection. We also carry out detailed inspections at each stage of the manufacturing process.We can afford to do this as we build our products by hand in small batches. After assembly, the performance of each loudspeaker is measured. Then it is burnt in for at least 12 hours and measured again. Once the burn process is complete each loudspeaker is given a final detailed physical inspection before being packed.
